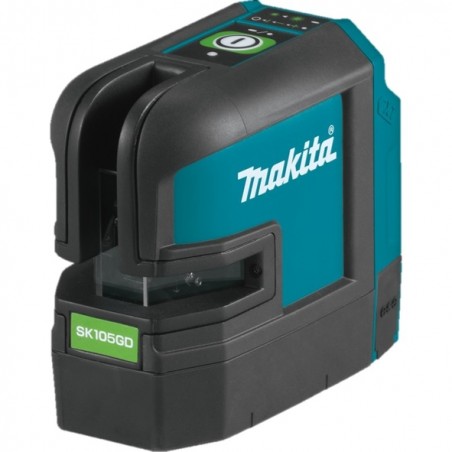

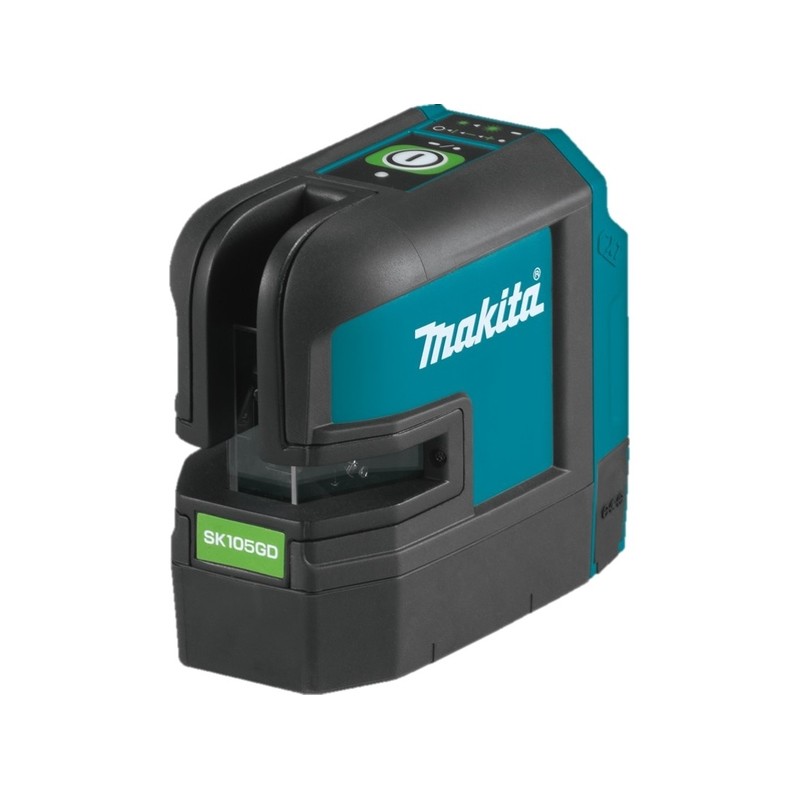

Model SK105D is a rechargeable green crosLED light blinks if out-of-level
Pendulum lock
Pulse power for receiver
DC Jack – allows compatibility with LXT batteries if used with a USB adaptor
2 Brightness modes (High and Eco), can be selected depending on work conditions.
STANDARD ACCESSORIES:
CD with user manual
Quick reference guide
Safety instructions
Laser target plate
L-adapter (magnetic)
Carry bags-line laser powered by 12V max CXT battery.
Voltage 12 v
Battery Type Lithium-ion
Body only machine
Laser Colour Green
Beam direction/fan angle Vertical >160°, Horizontal >180°
Range 25m
Range with receiver 80 m
Self Levelling Accuracy ±0.3 mm/m = ±3.0 mm @ 10m
Horizontal/Vertical line accuracy ±0.3 mm/m
Self Levelling Range ± 4 º
Self-levelling time < 3 seconds
Laser Type 635 ± 5 nm, Class 2
Laser line width at 5m distance < 2mm
Approx. Continuous Run Time (4.0Ah) 40 hrs
Operating Temperature Range -10 - 50 ºC
Storage Temperature Range -25 - 70 ºC
Tripod Thread 1/4 "
Net weight 0.67 - 0.84 kg
Pulse Mode w/
Detector Pendulum Lock
